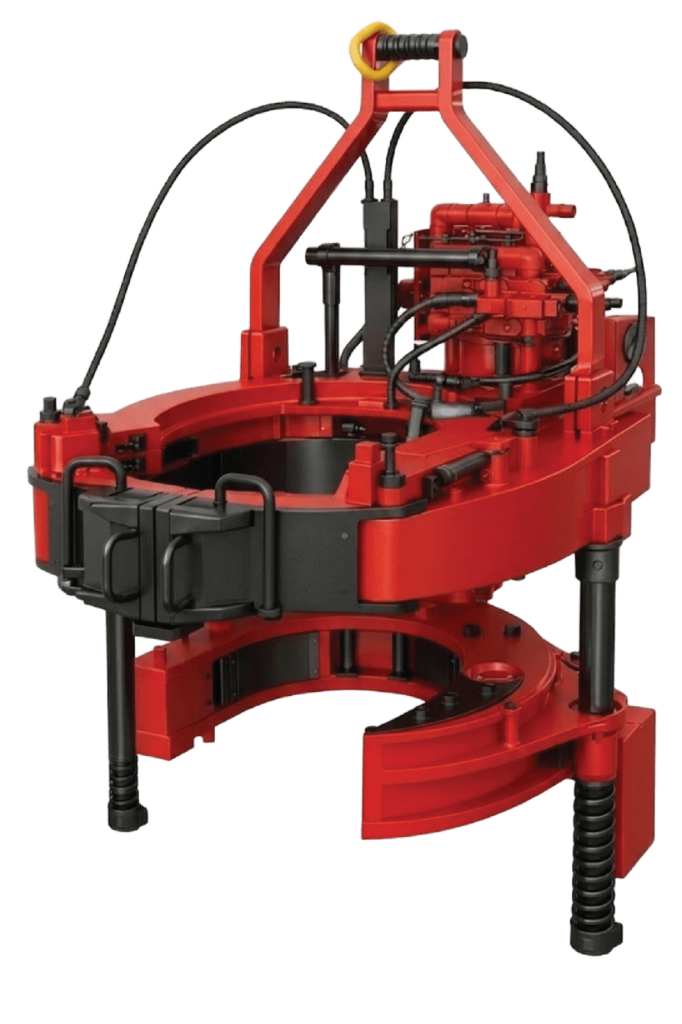

KD13375 Casing Tong
Details and Specs
|
Range |
Main Tong: 4” ~ 14” |
Backup Tong: 4” ~ 15 1/2” | |
|
Rated Pressure |
14 MPa | ||
|
Working Flow |
187.5 L/min (55 GPM) | ||
|
Max Torque (Top Gear) |
Top |
5.5 kN·m (4400 ft·lbs) | |
|
Low |
55 kN·m (40 600 ft·lbs) | ||
|
Tong Head Speed (Top Gear) |
50 RPM | ||
|
Tong Head Speed (Low Gear) |
5.5 RPM | ||
|
Torque Arm |
956 mm / 37.6” | ||
|
Dimension (L×W×H) |
1676 × 1017 × 1900 mm | ||
|
Weight |
Main Tong: 1000 kg With Backup: 1632 kg (with spring hanger) | ||
|
Jaw Size |
4, 4 1/4”, 4 1/2”, 5”, 5 1/2”, 5 1/2”, 5 5/8”, 6”, 7.17” 7 3/4” 7 5/8”, 8”, 8 | ||
Built in Canada for efficiency and reliability, the KT14000A Casing Tong is engineered for precise make-up and break-out of pipe threads during casing operations.
Its powerful hydraulic system enhances connection accuracy, reduces operator effort, and improves safety by minimizing thread damage and handling errors — making it a dependable choice for modern oilfield service and well operations
Features:
- Open-face integral tong head with double jaw-plate design
- Four-speed operation delivering high torque and wide working range
- Brake-belt braking system with high-stiffness notched gear support
- Fully hydraulic shifting with durable cast-steel jaws
- Reinforced notched large-gear support structure for increased strength and rigidity
- Equipped with hydraulic torque indicator and computer interface for torque monitoring
- Hydraulic safety-door protection system and wide torque capacity
KD20-50 Casing Tong
Details and Specs
|
Range |
Main Tong: 4” ~ 14” |
Backup Tong: 4” ~ 15 1/2” | |
|
Rated Pressure |
14 MPa | ||
|
Working Flow |
187.5 L/min (55 GPM) | ||
|
Max Torque (Top Gear) |
Top |
5.5 kN·m (4400 ft·lbs) | |
|
Low |
55 kN·m (40 600 ft·lbs) | ||
|
Tong Head Speed (Top Gear) |
50 RPM | ||
|
Tong Head Speed (Low Gear) |
5.5 RPM | ||
|
Torque Arm |
956 mm / 37.6” | ||
|
Dimension (L×W×H) |
1676 × 1017 × 1900 mm | ||
|
Weight |
Main Tong: 1000 kg With Backup: 1632 kg (with spring hanger) | ||
|
Jaw Size |
4, 4 1/4”, 4 1/2”, 5”, 5 1/2”, 5 1/2”, 5 5/8”, 6”, 7.17” 7 3/4” 7 5/8”, 8”, 8 | ||
Built in Canada for efficiency and reliability, the KT14000A Casing Tong is engineered for precise make-up and break-out of pipe threads during casing operations.
Its powerful hydraulic system enhances connection accuracy, reduces operator effort, and improves safety by minimizing thread damage and handling errors — making it a dependable choice for modern oilfield service and well operations
Features:
- Open-face integral tong head with double jaw-plate design
- Four-speed operation delivering high torque and wide working range
- Brake-belt braking system with high-stiffness notched gear support
- Fully hydraulic shifting with durable cast-steel jaws
- Reinforced notched large-gear support structure for increased strength and rigidity
- Equipped with hydraulic torque indicator and computer interface for torque monitoring
- Hydraulic safety-door protection system and wide torque capacity

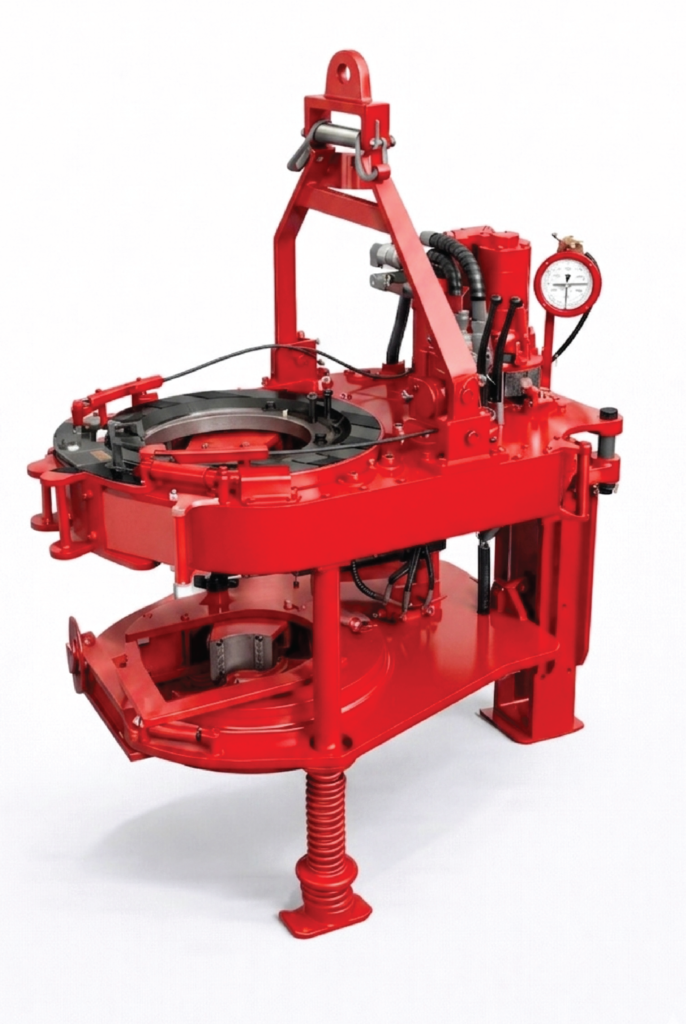

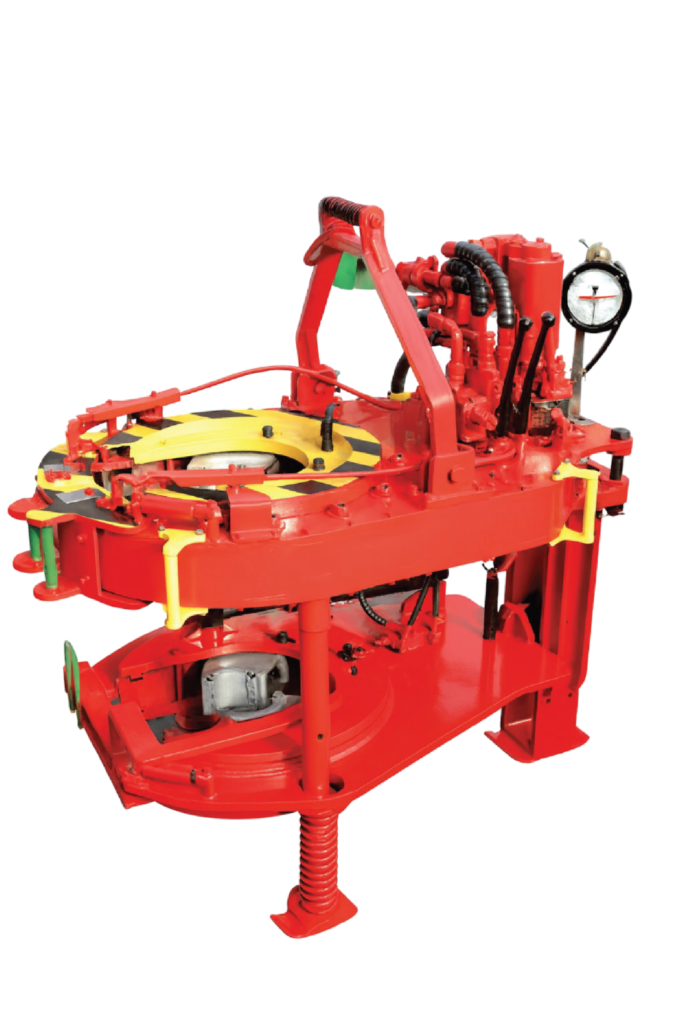

KT14000A Casing Tong
Details and Specs
|
Range |
Main Tong: 4” ~ 14” |
Backup Tong: 4” ~ 15 1/2” | |
|
Rated Pressure |
14 MPa | ||
|
Working Flow |
187.5 L/min (55 GPM) | ||
|
Max Torque (Top Gear) |
Top |
5.5 kN·m (4400 ft·lbs) | |
|
Low |
55 kN·m (40 600 ft·lbs) | ||
|
Tong Head Speed (Top Gear) |
50 RPM | ||
|
Tong Head Speed (Low Gear) |
5.5 RPM | ||
|
Torque Arm |
956 mm / 37.6” | ||
|
Dimension (L×W×H) |
1676 × 1017 × 1900 mm | ||
|
Weight |
Main Tong: 1000 kg With Backup: 1632 kg (with spring hanger) | ||
|
Jaw Size |
4, 4 1/4”, 4 1/2”, 5”, 5 1/2”, 5 1/2”, 5 5/8”, 6”, 7.17” 7 3/4” 7 5/8”, 8”, 8 | ||
Built in Canada for efficiency and reliability, the KT14000A Casing Tong is engineered for precise make-up and break-out of pipe threads during casing operations.
Its powerful hydraulic system enhances connection accuracy, reduces operator effort, and improves safety by minimizing thread damage and handling errors — making it a dependable choice for modern oilfield service and well operations
Features:
- Open-face integral tong head with double jaw-plate design
- Four-speed operation delivering high torque and wide working range
- Brake-belt braking system with high-stiffness notched gear support
- Fully hydraulic shifting with durable cast-steel jaws
- Reinforced notched large-gear support structure for increased strength and rigidity
- Equipped with hydraulic torque indicator and computer interface for torque monitoring
- Hydraulic safety-door protection system and wide torque capacity

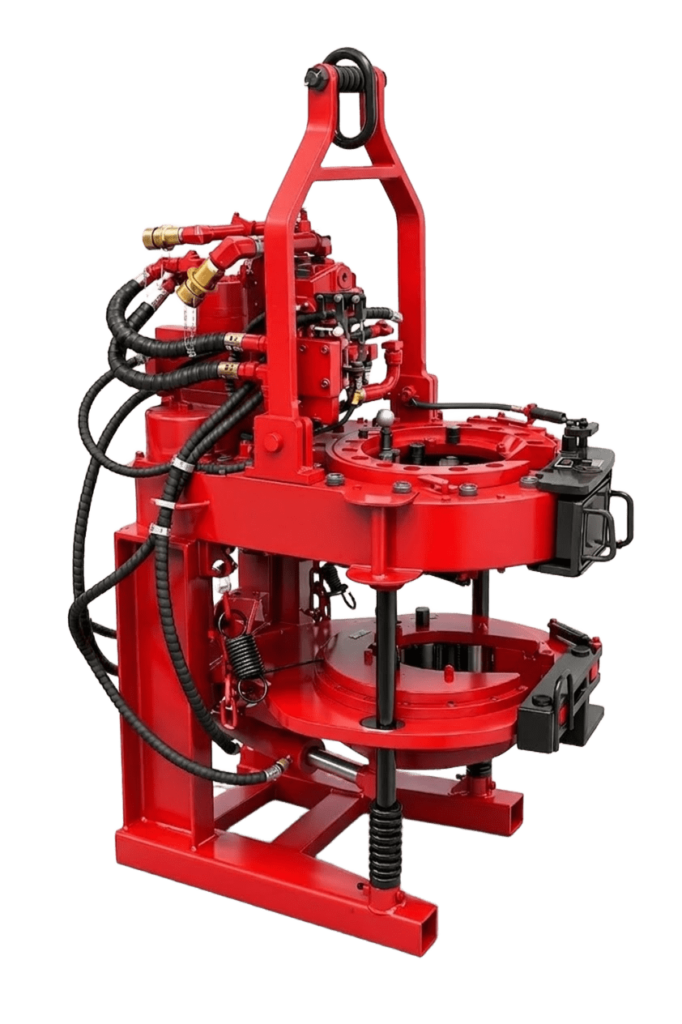

KHT5500 Casing Tong
Details and Specs
|
Applicable Pipe Range |
Main Tong: 2 3/8″–5 1/2″ | ||||
|
Rated Pressure |
14 MPa (2000 PSI) | ||||
|
Main Tong Opening Size |
5 7/8″ (150 mm) | ||||
|
Torque @2000 |
High Gear |
2500 ft·lb / 3400 N·m |
Head Rotation |
High Gear |
78 RPM |
|
Second High Gear |
5900 ft·lb / 8000 N·m |
Second High Gear |
33 RPM | ||
|
Second Low Gear |
8800 ft·lb / 12000 N·m |
Second Low Gear |
22 RPM | ||
|
Low Gear |
20000 ft·lb / 27000 N·m |
Low Gear |
9.5 RPM | ||
|
Dimensions (L × W × H) |
48″ × 33.9″ × 67.3″ / 1220 × 860 × 1708 mm | ||||
|
Weight |
Main Tong: 1230 lb / 560 kg Backup Tong: 880 lb / 400 kg | ||||
|
Jaw Plate Sizes |
Main Tong: 5.5″ (139.7 mm), 6.5″ (165.1 mm), Backup Tong: 5.0″ (127 mm), 4.5″ | ||||
Built in Canada for reliability and precision, the KHT5500 Hydraulic Power Tong is designed for efficient make-up and break-out of tubing from 2 3/8″ to 4 1/2″ and casing up to 5 1/2″.
Engineered for high performance and operator safety, it delivers smooth torque control, reduces manual labor, and protects threaded connections during critical oilfield operations.
Features:
- Open-face, integrated tong head
- Three-jaw plate clamping system reduces string damage
- Four-speed operation for wide range and high rated torque
- Brake-belt braking system
- Large open-gear support structure for enhanced strength and rigidity
- High-strength steel shell; jaws manufactured through precision casting and forging
- Equipped with hydraulic torque indicator and interface for torque monitoring instruments, enabling computerized torque management

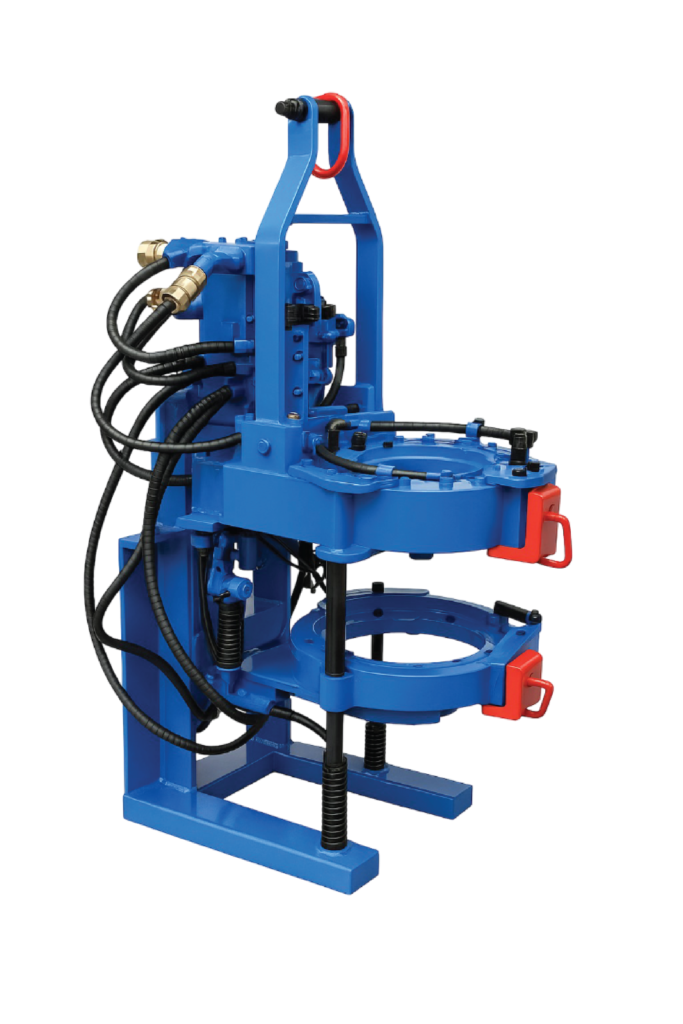

16-25 Casing Tong
Details and Specs
|
Range |
Φ114 ~ Φ340 (4 1/2” ~ 13 3/8”) |
|
High Gear Rated Torque |
4200 N·m (3100 ft·lbs) — Four Speed Design |
|
Low Gear Rated Torque |
35 000 N·m (25 000 ft·lbs) |
|
High Gear Rated Speed (RPM) |
80 |
|
Low Gear Rated Speed (RPM) |
10 |
|
MWP (Max. Pressure) |
17.5 MPa (2500 psi) |
|
Rated Flow |
Rated: 227 L/min (70 gpm) |
|
Dimensions (L×W×H) |
1737 × 1020 × 1450 mm (68.4” × 40.2” × 57”) (Combination) |
|
Weight |
Main Tong: 600 kg (1322 lbs) / Combination: 1200 kg (2645 |
The 16–25 Casing Tongs are Canadian-built hydraulic power tools designed for efficient make-up and break-out of tubing during oilfield installation and servicing operations.
Featuring advanced tubing clamping technology, a high-performance transmission system, and a reliable safety control system, these tongs provide secure, precise, and effective handling across a range of tubing specifications. Ideal for field operations, they ensure safe and efficient connection and disconnection of threaded tubing in demanding well environments.
Features:
- Automatic hydraulic cutoff for safety — operation stops when the door is opened
- Hydraulic cylinder positioning system for quick and easy adjustments
- Strong, rigid frame with large ring transmission and multi-roller support
- Precision-cast tong head for high strength, easy maintenance, and reliable clamping
- Belt-brake system delivering strong torque, easy operation, and low maintenance
- Compatible with torque gauge and NKY recorder for accurate torque measurement and data logging
