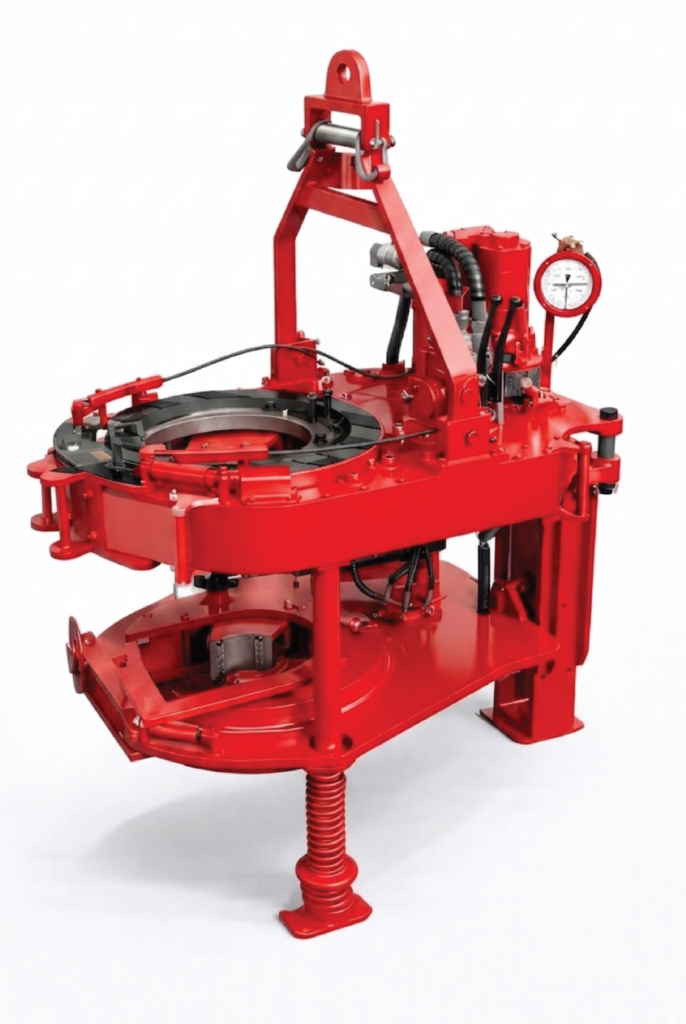

KT14000A Casing Tong
Features:
- Open-face integral tong head with double jaw-plate design
- Four-speed operation delivering high torque and wide working range
- Brake-belt braking system with high-stiffness notched gear support
- Fully hydraulic shifting with durable cast-steel jaws
- Reinforced notched large-gear support structure for increased strength and rigidity
- Equipped with hydraulic torque indicator and computer interface for torque monitoring
- Hydraulic safety-door protection system and wide torque capacity
Product Description
Built in Canada for efficiency and reliability, the KT14000A Casing Tong is engineered for precise make-up and break-out of pipe threads during casing operations.
Its powerful hydraulic system enhances connection accuracy, reduces operator effort, and improves safety by minimizing thread damage and handling errors — making it a dependable choice for modern oilfield service and well operations
Technical Specifications
|
Range |
Main Tong: 4” ~ 14” |
Backup Tong: 4” ~ 15 1/2” | |
|
Rated Pressure |
14 MPa | ||
|
Working Flow |
187.5 L/min (55 GPM) | ||
|
Max Torque (Top Gear) |
Top |
5.5 kN·m (4400 ft·lbs) | |
|
Low |
55 kN·m (40 600 ft·lbs) | ||
|
Tong Head Speed (Top Gear) |
50 RPM | ||
|
Tong Head Speed (Low Gear) |
5.5 RPM | ||
|
Torque Arm |
956 mm / 37.6” | ||
|
Dimension (L×W×H) |
1676 × 1017 × 1900 mm | ||
|
Weight |
Main Tong: 1000 kg With Backup: 1632 kg (with spring hanger) | ||
|
Jaw Size |
4, 4 1/4”, 4 1/2”, 5”, 5 1/2”, 5 1/2”, 5 5/8”, 6”, 7.17” 7 3/4” 7 5/8”, 8”, 8 | ||
