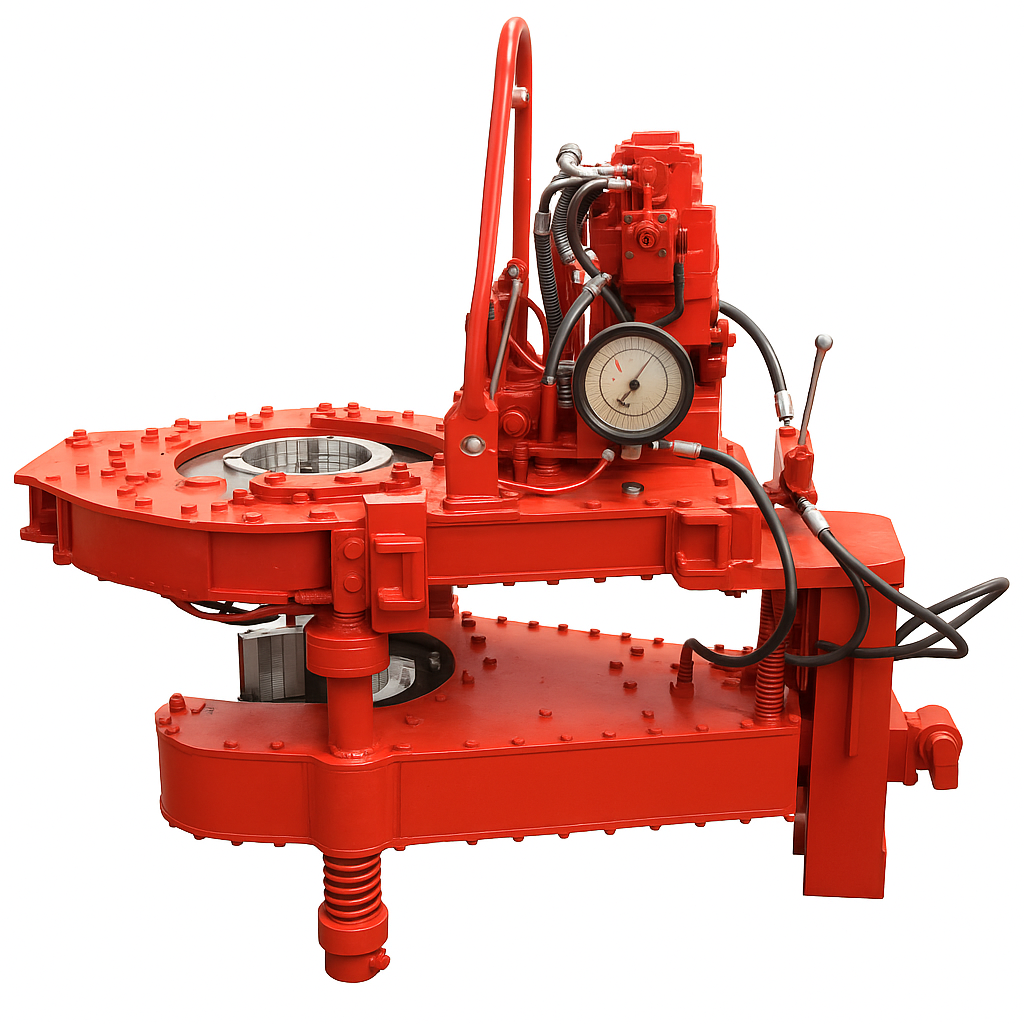

16-25 Casing Tong
Features:
- Automatic hydraulic cutoff for safety — operation stops when the door is opened
- Hydraulic cylinder positioning system for quick and easy adjustments
- Strong, rigid frame with large ring transmission and multi-roller support
- Precision-cast tong head for high strength, easy maintenance, and reliable clamping
- Belt-brake system delivering strong torque, easy operation, and low maintenance
- Compatible with torque gauge and NKY recorder for accurate torque measurement and data logging
Product Description
The Triumph 16–25 Casing Tongs are Canadian-built hydraulic power tools designed for efficient make-up and break-out of tubing during oilfield installation and servicing operations.
Featuring advanced tubing clamping technology, a high-performance transmission system, and a reliable safety control system, these tongs provide secure, precise, and effective handling across a range of tubing specifications. Ideal for field operations, they ensure safe and efficient connection and disconnection of threaded tubing in demanding well environments.
Technical Specifications
|
Range |
Φ114 ~ Φ340 (4 1/2” ~ 13 3/8”) |
|
High Gear Rated Torque |
4200 N·m (3100 ft·lbs) — Four Speed Design |
|
Low Gear Rated Torque |
35 000 N·m (25 000 ft·lbs) |
|
High Gear Rated Speed (RPM) |
80 |
|
Low Gear Rated Speed (RPM) |
10 |
|
MWP (Max. Pressure) |
17.5 MPa (2500 psi) |
|
Rated Flow |
Rated: 227 L/min (70 gpm) |
|
Dimensions (L×W×H) |
1737 × 1020 × 1450 mm (68.4” × 40.2” × 57”) (Combination) |
|
Weight |
Main Tong: 600 kg (1322 lbs) / Combination: 1200 kg (2645 |
